La vanne à passage direct et à opercule ETM Armaturen possède un obturateur qui se déplace linéairement, de manière perpendiculaire au sens de l’écoulement au niveau des portées d’étanchéité. Ses portées peuvent être à sièges obliques (obturateur à coin unique, obturateur à coin flexible). L’étanchéité vers l’extérieur est obtenue par un presse-étoupe.
Le robinet-vanne a pour fonction le sectionnement d’un fluide qu’il soit gaz ou liquide.

Nous fabriquons pour certains importants

Applications :

Pour eau, air, vapeur et tout autre fluide non-agressif et non-toxique

Matières / Materials

Corps,Chapeau : GP240GH+N,1.0619,1.4308,1.4408

Volant : C.S

Clapet ,Tige: X20CR13,1.4401,1.4301

Etanchéité de tige : Graphite

Etanchéité des sièges : X20CR13,STL 6#

Matériau: Acier moulé, acier inoxydable

Pression nominale: 10bar,16 bar,25 bar,40 bar

Diamètre nominale: 50-400 mm

Plage de la température: -60…+450°C

Position du travail: Tout

étanchéité élevée (classe A étanchéité selon la norme EN -12266 – 1)

boîtier compact

respect de l’environnement

face-à-face dimension selon DIN EN 558-1, série 14,Serie 15,Serie 26.

Construction EN 1984

Raccordement à brides EN 1092-B1

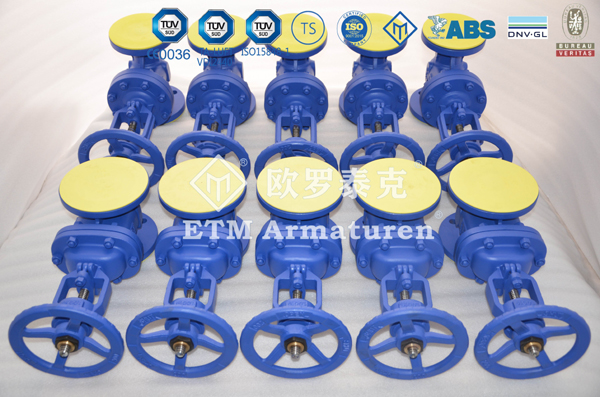

ETM Armaturen Gate Valves (F4 Type)

ETM Armaturen DIN Standard F4 Gate valves / (Length acc.to DIN EN 558-1,face to face series 14 )
ETM Armaturen DIN F4 Gate valve
ETM Armaturen DIN absperrschieber F4
ETM Armaturen DIN Válvulas de compuerta
ETM Armaturen DIN F4 šoupátko stavební délka dle DIN EN558-1 serie 14
ETM Armaturen DIN Standard F4 sluseventil (lengde iht. DIN EN 558-1, bygge lengde serie 14)
ETM Armaturen DIN Standardında F4 Sürgülü Vana
ETM Armaturen Van cổng chuẩn DIN kiểu F4

ETM Armaturen Products qualified by TÜV SÜD 2014/68/EU , TA-LUFT VDI2440, ISO 15848-1,ISO9001 approved.

ETM Armaturen Products can be apply for DNV-GL, ABS, BV, RINA, LR, KR marine certificates.
