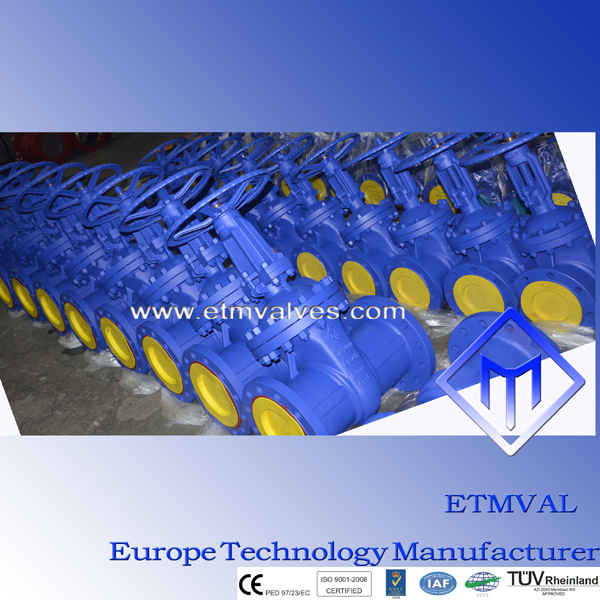

ETM DIN Gate Valve Export To Germany Customer

Today,ETM company have export 310 pcs valves to Germany customer (Product including DIN F4 Gate valve,DIN F7 Gate valve,DIN Swing Check Valve and DIN bellows globe valve).

We have maintained good business relationship with our customer in Germany more than 2 years.

This delivery has further deepened mutual trust and strengthened business cooperation.

ETM FIG. FIG.F.160

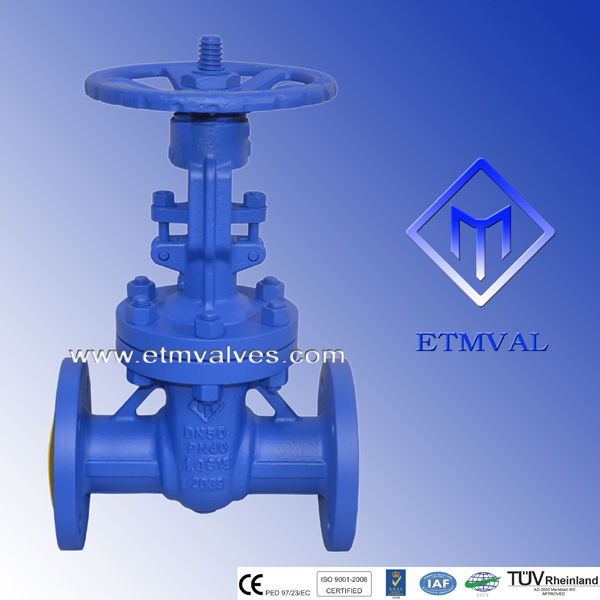

DIN Bolted Bonnet F4/F5/F7 Gate Valves
Gate Valve / Feature:
Proven technology
Full range of body/bonnet & trim materials Choice flexible wedge design
Welded seat in Cr-steel
Back seating design
Upset forged T-head stem design OS&Y construction
Full port design Full length wedge guides
Optional impact hand wheel
Optional lengthen stem
DIN PN:PN16,PN25,PN40,
DIN DN:DN40-DN1200
Temperature Rating:-20°C up to +450°C
Body forms: DIN3202-F4,DIN3202-F5,DIN3202-F7,EN 558-1
Basic shell material: Carbon steel
Connections:Flanged ends,
Operation:Handwheel
Gate Valve / Mediums: Steam,gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc.

Material Equivalence:

EN Material Name                    EN Number          Forgings          ASTM Material              Forgings

EN 10213 GP240GH                  1.0619             1.0460           ASTM A216 WCB           A105

EN 10213 G20Mo5                    1.6220             1.0437          ASTM A352 LCB             A352 LF2

EN 10213 G17CrMo5-5              1.7357             1.7335           ASTM A217 WC6           A182 F11

EN 10213 G17CrMo9-10             1.7379             1.7380           ASTM A217 WC9          A182 F22

EN 10213 GX5CrNi19-10            1.4308              1.4301          ASTM A351 CF8            A182 F304

EN 10213 GX5CrNi19-11-2         1.4408              1.4401          ASTM A351 CF8M          A182 F316

Design&manufacture standard conforms to EN1984
Face to face standard conforms to EN558-1
Flange standard conforms to EN1092-1; Test conforms to EN12266;
