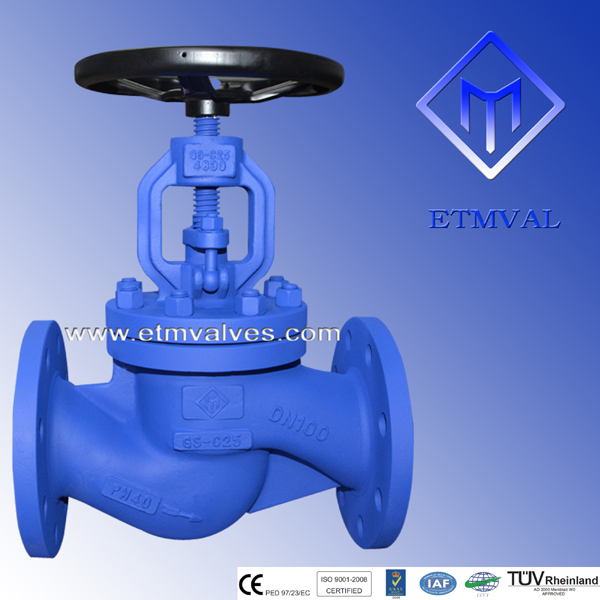

ETMVALVE DIN Bolted Bonnet Globe Valve

ETM FIG. S.150/151/152
DIN Gland Packing Globe Valves
Globe Valve / Feature:
Proven technology
Solid plug made of stainless material
Solid stem make of stainless material
Stem sealing in graphite Raised, turning stem
Back sealed stem Welded seat in stellite or Cr-steel
High-tensile Gland Packing Self adjusted gland
Plug disc,throttling disc,Balance disc design
DIN PN:PN16,PN25,PN40,PN63,PN100
DIN DN:DN15-DN400
Temperature Rating:-260°C up to +420°C
Body forms:Straight pattern body, Y-pattern body, Angle pattern body
Basic shell material:Low temperature carbon steel, Carbon steel, High temperature carbon steel, Stainless steel, High temperature stainless steel, High chromium stainless steel, Hastelloy, Inconel, Pure nickel, Titanium, Other special alloys
Connections:Flanged ends, Butt welding ends, Socket welding ends, Threaded ends, Other requirements
Operation:Handwheel, Lever, Chainwheel, Gear operator, Pneumatic piston actuator, Pneumatic diaphragm actuator, Electric actuator
Globe Valve / Applications: Industry, power stations , flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
Globe Valve / Mediums: Gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc.
Stanrard material : GP240GH (1.0619/GS-C25),G-X6CrNi18.9(1.4308),G-X6CrNiMo18.10 (1.4408)

Material Equivalence:

EN Material Name                    EN Number          Forgings          ASTM Material              Forgings

EN 10213 GP240GH                  1.0619             1.0460           ASTM A216 WCB           A105

EN 10213 G20Mo5                    1.6220             1.0437          ASTM A352 LCB             A352 LF2

EN 10213 G17CrMo5-5              1.7357             1.7335           ASTM A217 WC6           A182 F11

EN 10213 G17CrMo9-10             1.7379             1.7380           ASTM A217 WC9          A182 F22

EN 10213 GX5CrNi19-10            1.4308              1.4301          ASTM A351 CF8            A182 F304

EN 10213 GX5CrNi19-11-2         1.4408              1.4401          ASTM A351 CF8M          A182 F316

Design&manufacture standard conforms to EN 13709
Face to face standard conforms to EN 558-1
Flange standard conforms to EN 1092-1
Test conforms to EN 12266





DIN valves,globe valve,valve,stop valve,Rising Stem Globe Valve,globe valve DIN standard,globe valve EN standard,SDNR valve En,SDNR ,DIN szelepek,földgömb szelep,szelep, elzárószelep,átmeneti szelep emelkedő szár,DIN földgömb szelep,földgömb szelep EN szabvány SDNR szelep,DIN-Ventile, Absperrventil,صمام الكرة الأرضيةArmatur,Absperrventil,Absperrventil steigender Spindel,DIN Absperrventil,Absperrventil EN-Norm, SDNR Ventil,DIN van,van toàn cầu,van,dừng van,Globe Van gốc Rising,van tiêu chuẩn DIN toàn cầu,tiêu chuẩn toàn cầu van EN,SDNR van)stop check valve,agulha comprador válvula,needle valve,glob vanadistribütörü.Válvulas Globo,Valve shut-off valves,flange body,Robinete de inchidere cu ventil,,Afspærringsventiler,válvula de compuerta,Válvulas de Globo.Uzavírací ventily,Válvula Globo,글로브 밸브,صمام الكرة الأرضية.corp cu flanseR.S.P Corp inox CF8(1.4308),Клапи спирателни,Absperrventil,electric actuated ball valve,DIN-Ventile mit Flanschen,stainless steel valves,Ventile aus rostfreiem Stahl,DIN valves,globe valve,valve,stop valve,Rising Stem Globe Valve,globe valve DIN standard,globe valve EN standard,SDNRvalve)(Enત,SDNR ,DIN szelepek,földgömb szelep,szelep,elzárószelep,átmeneti szelep emelkedőszár,DINföldgömb szelep,földgömb szelep EN szabvány SDNR szelep,DIN-Ventile,Absperrventil,Armatur,Absperrventil,Absperrventil steigender Spindel,DIN Absperrventil,Absperrventil EN-orm,SDNR Ventil,DIN van,van toàn cầu,van,dừng van,Globe Van gốc Rising,van tiêu chuẩn DIN toàn cầu,tiêu chuẩn toàn cầu van EN,SDNR van)gate valve stem extensions,globe valve importer,industriële ventiel,Bronz Döküm Globe Vana,lng valves,Screwdown Stop & Non-Return Valve,Ventil uzatvárací vlnovcový,hlavicový,Ventil s regulačnou kuželkou,NÁZOVPRODUKTU,Absperrventile.Absperrventile.Van cầu.BLOBE VALVE.Globe Vana Válvulas de PistónVálvula globo tipo aero throttle globe valves. Glob Vana,Pistonlu vana .Glob vana.Küresel vana.3 yollu motorlu vana.2 yollu motorlu vana.Kelebek vana .Basinç düsürücü vana.Sürgülü vana.Yangın vanası.Selonoid vana.Balans vanası .Yükselen milli vana.Çek Vana.Doğalgaz Vanası.VÁLVULA GLOBO .changeover valves Excess Flow Valves.Zawory zaporoweMarine Bronze Globe Valve JIS F7303 16K.Krombach® Cast Iron Globe Valves are available in straight-through and bellows sealed design.Cast iron globe valves flanged PN 16 GG25 Design: EN 1074 Face to face length: EN 558-1 serie 1.Šoupátko rychločinnéŠoupátka Ventily uzavírací Ventily regulační Ventily zpětné Ventily odkalovací a odluhovací Ventily pojistné Ventily redukčníFiltry Vtokové a sací koše Klapky zpětné Odvaděče kondenzátu Pruhledítka Kulové kohouty,Cast Carbon Steel Globe Valves,europe valves,valve distributors,valve suppliers.valve distributors pty ltd.valve stockist.kenny distributors europe,Robinet à Soupape

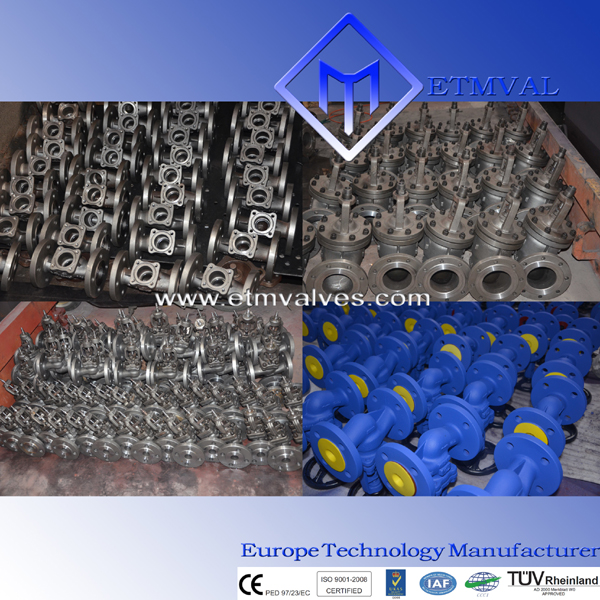

Stop valves in cast steel/stainless steel
Durchgangs- und Eck- Absperrventile, PN 40
aus Stahlguss 1.0619+N, DIN 86251-01
Innenteile 1.4021+QT
Baulänge nach DIN 3202/EN 558 F1/F32
Flansche nach DIN PN 40
Zulässige Betriebsdrücke und
Temperaturen nach DIN 2401
Materialspezifikation:
Gehäuse: GP240GH+N 1.0619+N
Bügeldeckel: GP240GH+N 1.0619+N
Sitz: X20Cr13+QT 1.4021+QT
Kegel: X20Cr13+QT 1.4021+QT
Spindel: X20Cr13+QT 1.4021+QT
