ETM FIG.P.061/062/063

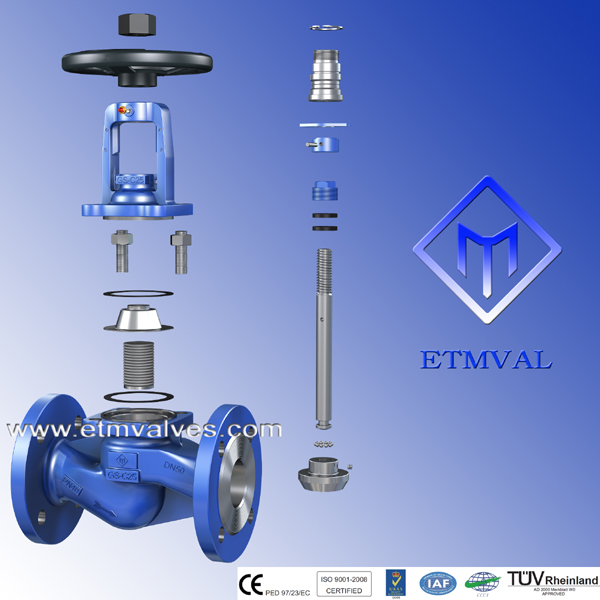

DIN Bellows Seal Stop Valve
Bellow Globe Valve / Feature:
Double wall bellows seal as standard
Heat dissipating bonnet design
Circlip fixing device
Storage of oil device
Bellows seal welded to stem
Bellows seal 8,000 load cycles
Yoke gasket,double chambered
Plug with marginal seat Welded seat in stellite or Cr-steel
External stem thread
Actuator retrofitting Secondary sealing: gland packing
Stem with roll hardened thread
DIN PN:PN16,PN25,PN40,PN63
DIN DN:DN15-DN400
Temperature Rating:-40°C up to +420°C
Body forms:Straight pattern body, Y-pattern body, Angle pattern body Basic shell
material:Low temperature carbon steel, Carbon steel,Stainless steel.
Connections:Flanged ends, Butt welding ends.
Operation:Handwheel.
Standard material : GP240GH (1.0619/GS-C25),G-X6CrNi18.9(1.4308),G-X6CrNiMo18.10 (1.4408)
Design&manufacture standard conforms to EN 13709
Face to face standard conforms to EN 558-1
Flange standard conforms to EN 1092-1
Test conforms to EN 12266
DIN Bellows Seal Stop Valve Plus Type
