April,2015,ETM have delivery the DIN long life bellows seal globe valve (ETM FIG.L.963) to Euope market. we supply DIN industrial valves to this customer from 2013,And it is first time delivery at 2015.
Grand total 243 pcs valves,total 11 cases valves,Their first delivery means an enormous lot to us, marking the beginning of long-term cooperation with ETM.
DIN long life bellows
seal globe valve
ETM FIG.L.961
ETM FIG.L.962
ETM FIG.L.963

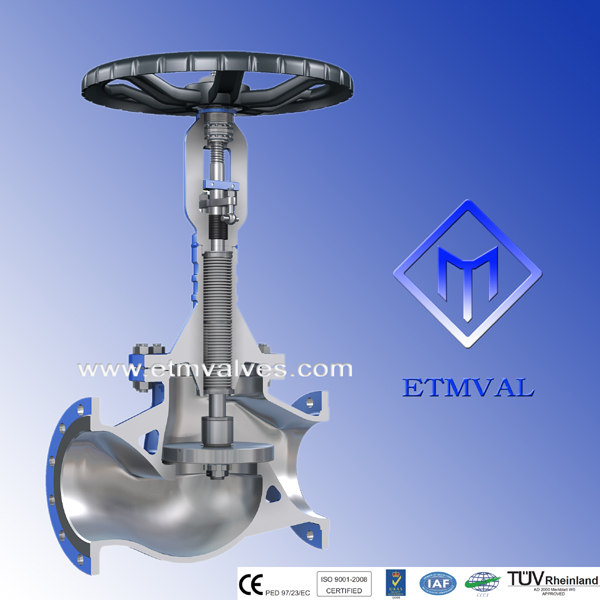

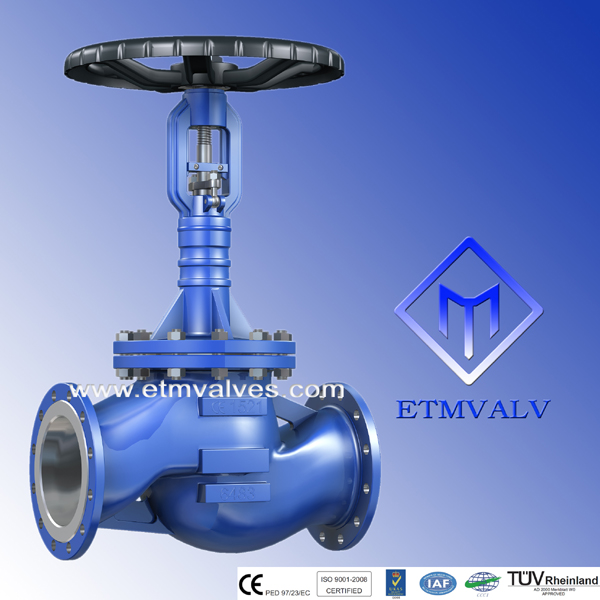

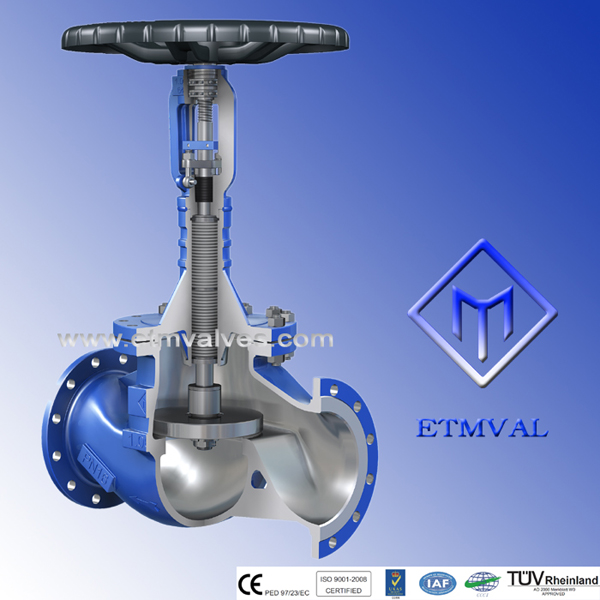

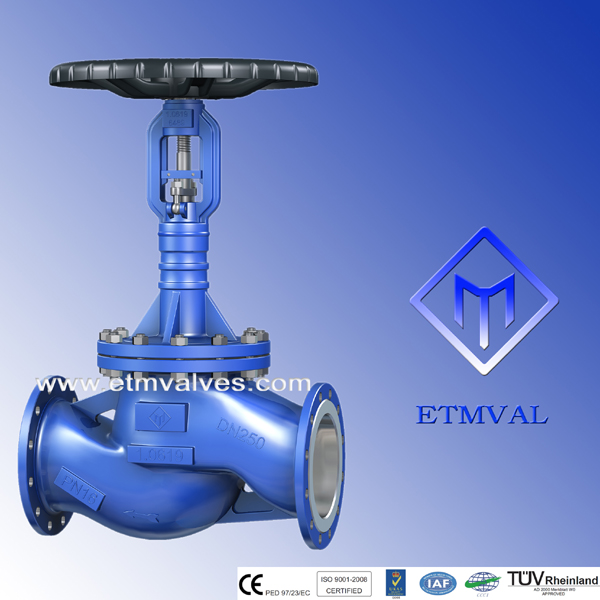

DIN long life bellows seal globe valve
DIN long life bellows seal globe valve / Feature:
Three Layers bellows design with SS316Lmaterial.
Heat dissipating bonnet design
Bellows seal welded to stem
Bellows seal 8,000 load cycles
Yoke gasket,double chambered
Double balance disc design
Actuator retrofitting Secondary sealing: gland packing
Material Equivalence:
EN Material Name EN Number Forgings ASTM Material Forgings
EN 10213 GP240GH 1.0619 1.0460 ASTM A216 WCB A105
EN 10213 G20Mo5 1.6220 1.0437 ASTM A352 LCB A352 LF2
EN 10213 G17CrMo5-5 1.7357 1.7335 ASTM A217 WC6 A182 F11
EN 10213 G17CrMo9-10 1.7379 1.7380 ASTM A217 WC9 A182 F22
EN 10213 GX5CrNi19-10 1.4308 1.4301 ASTM A351 CF8 A182 F304
EN 10213 GX5CrNi19-11-2 1.4408 1.4401 ASTM A351 CF8M A182 F316
ETM Armaturen is a 2014/68/EU pressure equipment directive and ISO 9001 certified factory specializing in the manufacture & export of DIN industrial valves. Products cover : DIN Bellows Globe valve,DIN Globe Valve,DIN Gate Valve,DIN Check Valve,DIN Y Type Strainer.
