ETM Armaturen Absperrschieber
Keilflachschieber in GP-240GH/1.0619 mit außenliegender Spindel ETM FIG.F.163 DN50
Ausführung:
metallisch-dichtend
steigende Spindel
nichtsteigendes Handrad
Werkstoffe:
Gehäuse und Haube in GP240GH+N &1.0619
Gehäuse- und Keilsitze in 1.4021 / X20Cr13
Spindel in 1.4021 / X20Cr13
Flanschanschluss / Baulänge:
DIN EN 1092-1 Form B1
Baulänge DIN EN 558-1 S.15
PN 40 in DN 40 - 350 Grundreihe 26
Weitere Ausführung:
mit Kettenrad
mit Getriebe, Antrieb

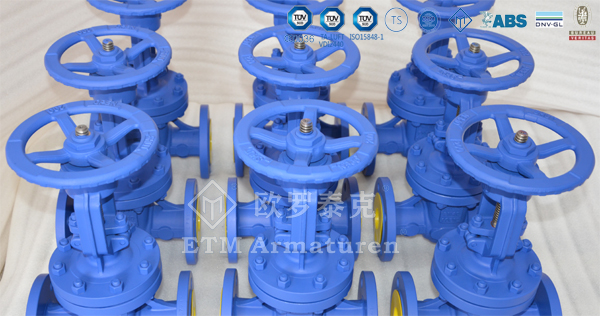

ETM Armaturen DIN Gate Valve FIG.F.163 DN50
ETM Armaturen DIN Absperrschieber
ETM Armaturen DIN Low Torque Gate Valve
ETM Armaturen DIN F7 Gate valve
ETM Armaturen DIN Absperrschieber F7
ETM Armaturen DIN Válvulas de compuerta F7
ETM Armaturen DIN F7 šoupátko stavební délka dle DIN EN558-1 serie 26;
ETM Armaturen DIN Standard F7 sluseventil (lengde iht. DIN EN 558-1, bygge lengde serie 26)
ETM Armaturen DIN Standardında F7 Sürgülü Vana
ETM Armaturen Van cổng chuẩn DIN kiểu F7

ETM Armaturen Product Qualified by TÜV SÜD 2014/68/EU , TA-LUFT VDI2440, ISO 15848-1,ISO9001 approved.

ETM Armaturen Products can be apply for DNV-GL, ABS, BV, RINA, LR, KR marine certificates.

ETM Armaturen,欧罗泰克阀门
ETMVAL ,ETMVALVE

ETM,Europe Technology Manufacturer

Join our team! Become a sales agent or distributor.

www.etmarmaturen.com info@etmarmaturen.de

Operation type
Handwheel,Gear, Electric actuator,Pneumatic actuator,Bare stem
Standard
Design and Manufacture: EN 13709/DIN 3352
Inspection and Test: EN 12266/DIN 3230
End flange dimension: EN 1092-1/DIN 2501
BW end dimension: EN12627/DIN 3239
Face to face: EN 558-1/ DIN 3202 F4
Pressure-temperature ratings: DIN 2401/ASME B16.34
NACE: NACE 0175
Nominal diameter(DN): DN32-DN600;
Nominal pressure(PN): PN6,PN10,PN16,
Material:
Material:GP240GH (1.0619/GS-C25),G-X6CrNi18.9(1.4308),G-X6CrNiMo18.10 (1.4408),1.4404-316L
ASTM A216 WCB WCC;ASTM A217 WC1 WC6 WC9;ASTM A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M;.ASTM A352 LC1 LCB LCC LC3 or by customers
(Cast Steel, Alloy Steel, Stainless Steel, Special Steel)
