ETM Armaturen 2018 DIN Std Full Open Swing Check Valves

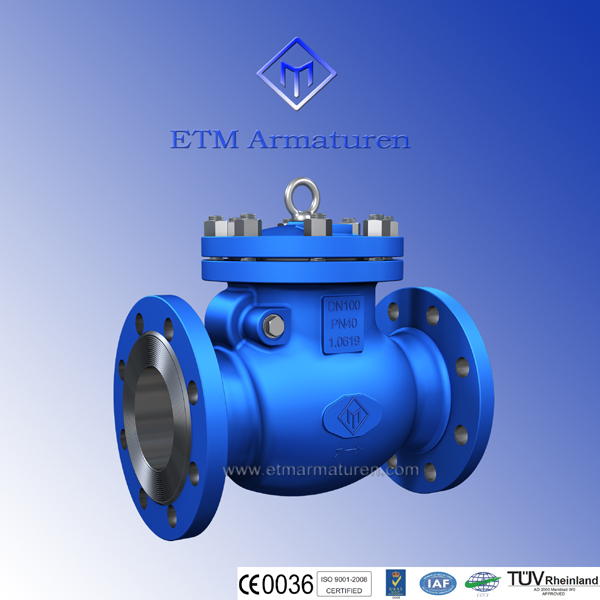

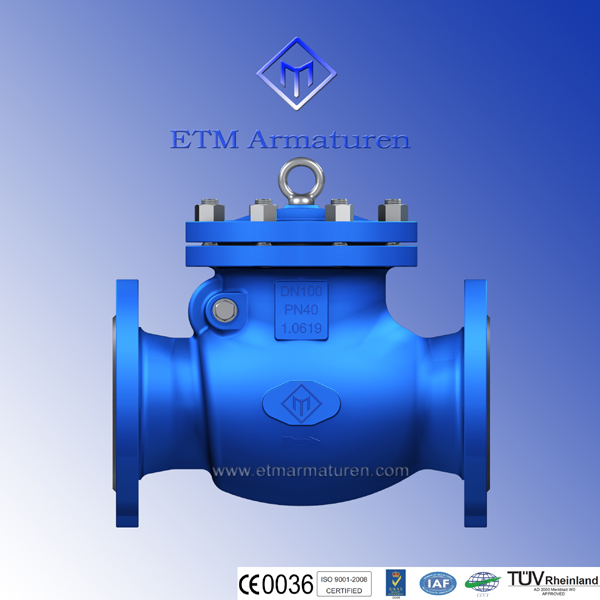

ETM Armaturen 2018 Full Open Swing Check Valve
DIN Standard Swing Check Valves (DIN 3202 F6 ,DIN 3202 F1)
DIN F6 Swing check valve
DIN F1 Swing check valve
DIN Rückschlagklappe
DIN Válvula de retención clapeta oscilante
DIN Zpětná klapka stavební délka dle DIN EN558-1 serie 48 & serie 1
DIN Standard Sving-klaff tilbakeslagsventil (Lengde iht. to DIN EN 558-1, bygge lengde serie 48 & serie 1)
DIN Standardında Çalpara Çek Valf
Van 1 chiều lá lật chuẩn DIN
ETM Code No. : ETM FIG.C.260,ETM FIG.C.261,ETM FIG.C.262,ETMFIG.C.263
This ETM swing check valve can be used in Industry, Powerstations, Flue gas purification plant, processing technology, gas supply,
vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district heating,
cooling and freezing systems, general plant manufacturing, steam systems. This type valve designed to cut off the flow of industrial fluid.
This valve is maintenance-free and like all ETM valves - is classed leak rate “A” in accordance with EN 12266-1.
Products:
ETM-FIGURE C-BS/EN Standard swing check valve PN 10 Bar with Flanges According to DIN EN 1092-1
ETM-FIGURE C-BS/EN Standard swing check valve PN 16 Bar with Flanges According to DIN EN 1092-1
ETM-FIGURE C-BS/EN Standard swing check valve PN 25 Bar with Flanges According to DIN EN 1092-1
ETM-FIGURE C-BS/EN Standard swing check valve PN 40 Bar with Flanges According to DIN EN 1092-1
ETM-FIGURE C-BS/EN Standard swing check valve PN 10 Bar with Butt Weld Ends According to DIN EN 12627
ETM-FIGURE C-BS/EN Standard swing check valve PN 16 Bar with Butt Weld Ends According to DIN EN 12627
ETM-FIGURE C-BS/EN Standard swing check valve PN 25 Bar with Butt Weld Ends According to DIN EN 12627
ETM-FIGURE C-BS/EN Standard swing check valve PN 40 Bar with Butt Weld Ends According to DIN EN 12627
Material Equivalence:
EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings
EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105
EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2
EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11
EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22
EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304
EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316
