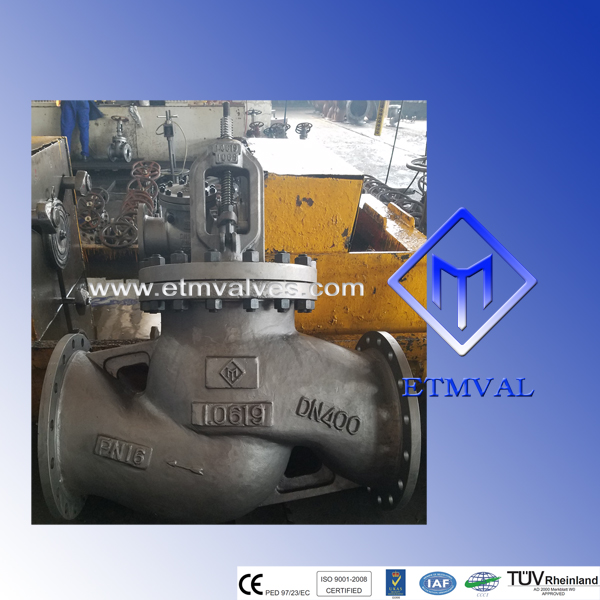

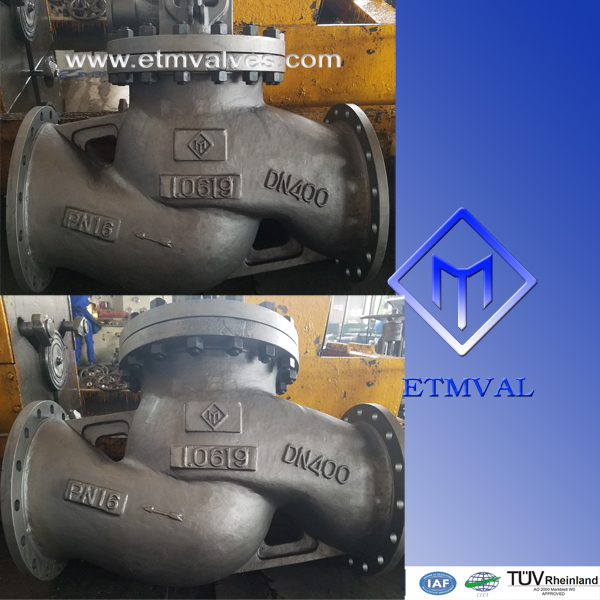

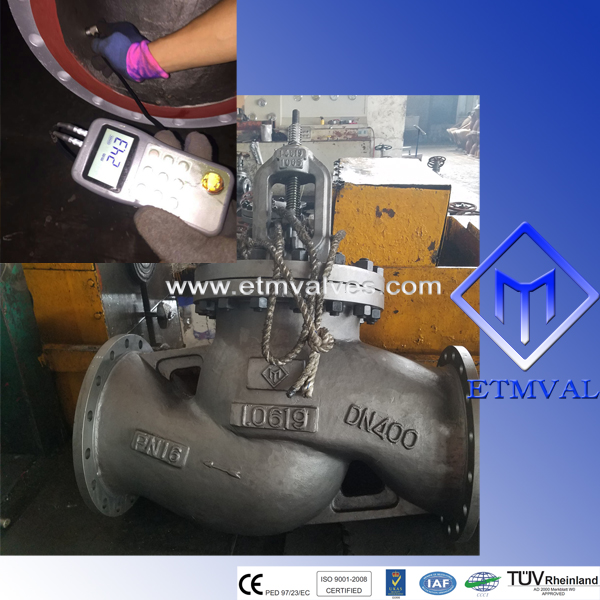

Gland Packing Globe Valves ( Straight- Through Type)

DIN Standard Gland Packing Globe Valve

DIN Globe valve

DIN Stop valve

DIN Absperrventil Durchgangsform

DIN Válvulas de globo

DIN ventil uzavírací s klasickou ucpávkou přímý

DIN Standard seteventiler med pakkboks (rett løp modell)

DIN Standardında Salmastra Baskılı Glob Vana(Düz Tip)

Van cầu chuẩn DIN (kiểu góc)

ETM Code No. : ETM FIG.S.150,ETM FIG.S.151,ETM FIG.S.152

This ETM globe valve can be used in Industry, Powerstations, Flue gas purification plant, processing technology, gas supply, vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district heating, cooling and freezing systems, general plant manufacturing, steam systems. This type valve is maintenance-free and like all ETM valves - is classed leak rate “A” in accordance with EN 12266-1.

Products:

ETM-FIGURE S-BS/EN Standard gland packing globe valve PN 16 Bar with Flanges According to DIN EN 1092-1

ETM-FIGURE S-BS/EN Standard gland packing globe valve PN 25 Bar with Flanges According to DIN EN 1092-1

ETM-FIGURE S-BS/EN Standard gland packing globe valve PN 40 Bar with Flanges According to DIN EN 1092-1

ETM-FIGURE S-BS/EN Standard gland packing globe valve PN 16 Bar with Butt Weld Ends According to DIN EN 12627

ETM-FIGURE S-BS/EN Standard gland packing globe valve PN 25 Bar with Butt Weld Ends According to DIN EN 12627

ETM-FIGURE S-BS/EN Standard gland packing globe valve PN 40 Bar with Butt Weld Ends According to DIN EN 12627

Material Equivalence:

EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings

EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105

EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2

EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11

EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22

EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304

EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

Features:

u Cast steel PN10 ,PN16,PN25,PN40– DN15 to DN400

Straight-through

Easy operating handwheel with safe operation at all working temperatures

Solid plug made of stainless material

Solid stem make of stainless material

Stem sealing in graphite Raised, turning stem

Back sealed stem Welded seat in stellite or Cr-steel

High-tensile Gland Packing Self adjusted gland

Flat Disc ,Parabolic & Regulation disc , Soft Seated Disc, Cone Disc, Stop Check Disc, Double Stage Disc & Balance Disc

Mediums:

Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, etc.

Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:

The test are carried out according to DIN EN12266-1

Shell test : nominal pressure (PN)X1.5

Tightness of seat :nominal pressure (PN)X1.1

Certificate of conformity in according to with PN-EN10204

Design according to PN-EN12516-2

Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.

Installation:

They can be installed on pipelines in a vertical or horizontal and operation only

Direction of flow see body mark

Connection:

Butt-Welded according to DIN EN12627; Flanged according to EN1092-1 or to customer request

Face to face dimensions according to EN558-1 1 Series (DIN3202 F1 Series)

Operation:

Handwheel (If required)

Electric actuator

Gear box

Flange ISO5210 (Ready for actuator)
