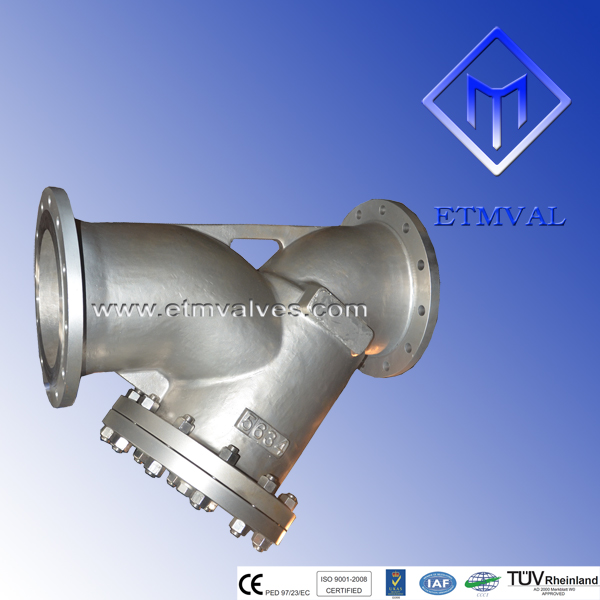

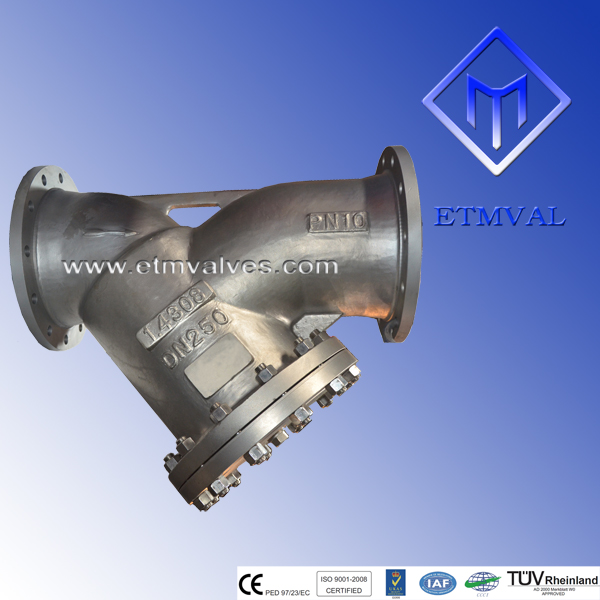

Y Type Strainer

DIN Standard Y Type Strainer

DIN Y Schmutzfänger

DIN Y Filtro tipo

DIN Y filtr

DIN Standard Y type filter

DIN Standardında Y-Tipi Pislik Tutucu

Lọc Y chuẩn DIN

ETM Code No. : ETM FIG.T.830,ETM FIG.T.831

This ETM Y type strainer can be used in Industry, Power stations, Flue gas purification plant, processing technology, gas supply,

vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district

heating, cooling and freezing systems, general plant manufacturing, steam systems.

Products:

ETM-FIGURE T-BS/EN Standard Y type strainer PN 16 Bar with Flanges According to DIN EN 1092-1

ETM-FIGURE T-BS/EN Standard Y type strainer PN 25 Bar with Flanges According to DIN EN 1092-1

ETM-FIGURE T-BS/EN Standard Y type strainer PN 40 Bar with Flanges According to DIN EN 1092-1

ETM-FIGURE T-BS/EN Standard Y type strainer PN 16 Bar with Butt Weld Ends According to DIN EN 12627

ETM-FIGURE T-BS/EN Standard Y type strainer PN 25 Bar with Butt Weld Ends According to DIN EN 12627

ETM-FIGURE T-BS/EN Standard Y type strainer PN 40 Bar with Butt Weld Ends According to DIN EN 12627

Material Equivalence:

EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings

EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105

EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2

EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11

EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22

EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304

EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

Features:

Cast steel PN16, PN25,PN40 DN15 to DN500

Length acc.to DIN EN 558-1,face to face series 1 (DIN3202 series F1)

BB,Bolted Bonnet

Europe type screen

Screen in special material

Discharge valve

Drain plug

Mediums:

Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, etc.

Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:

The test are carried out according to DIN EN12266-1

Shell test : nominal pressure (PN)X1.5

Certificate of conformity in according to with PN-EN10204

Design according to PN-EN12516-2

Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.

Installation:

Y-Strainer can be installed at any position but you should as are the screen is downwards.

Direction of flow see body mark

Connection:

Butt-Welded according to EN12627,flanged according to EN1092-1 or to customer request

Face to face dimensions according to DIN EN 558-1,face to face series 1 (DIN3202 series F1)

Operation:

Self-acting, by pressure of medium
